Pre-treatment system remove dust and grease adhering to surfaces to be painted in the initial process, and form a chemical conversion coating for metal surfaces. They enhance adhesion properties of the item to be painted, and provide anti-corrosion properties to metal.

Dust and dirt defects are the biggest causes of painting defects, so the pre-treatment process must remove any dirt adhering to the work. Taikisha provides several work-clean technologies, including the high-pressure washing system I-LAS.

Our pre-treatment system enables you to efficiently remove iron particle that is the cause of the defect.

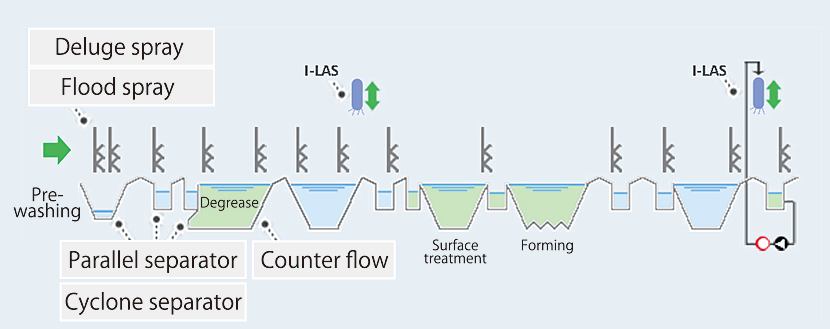

• Remove iron Particle from the body with the deluge spray and separate it with the parallel separator in the pre-washing process.
• Collect the iron Particle to the bottom of the entrance with the counter flow circulation in the degrease process.
• Use high-pressure spray (I-LAS) to wash off iron Particle from body surfaces in the water washing process.
